5-Axis CNC Router

Overview

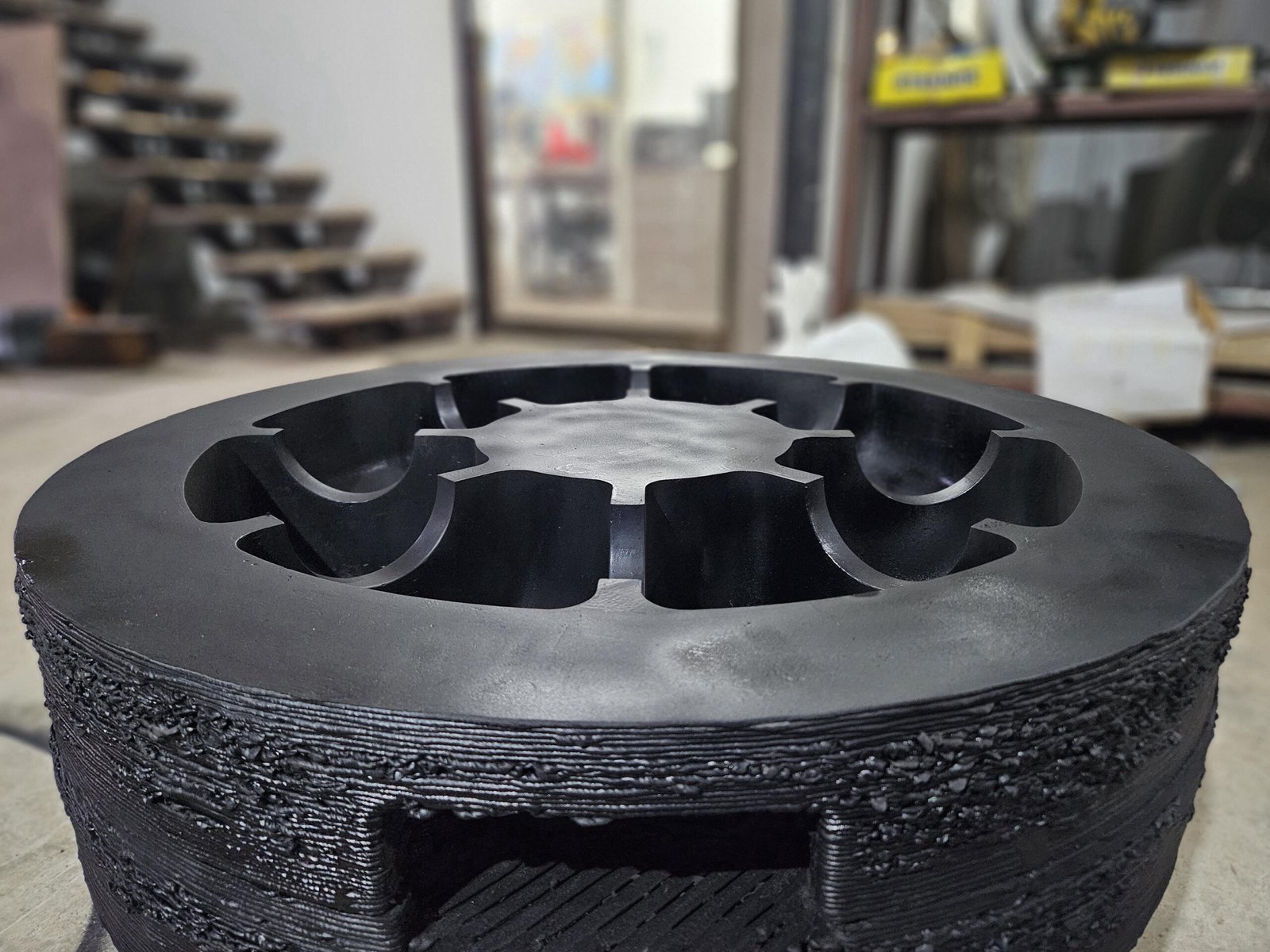

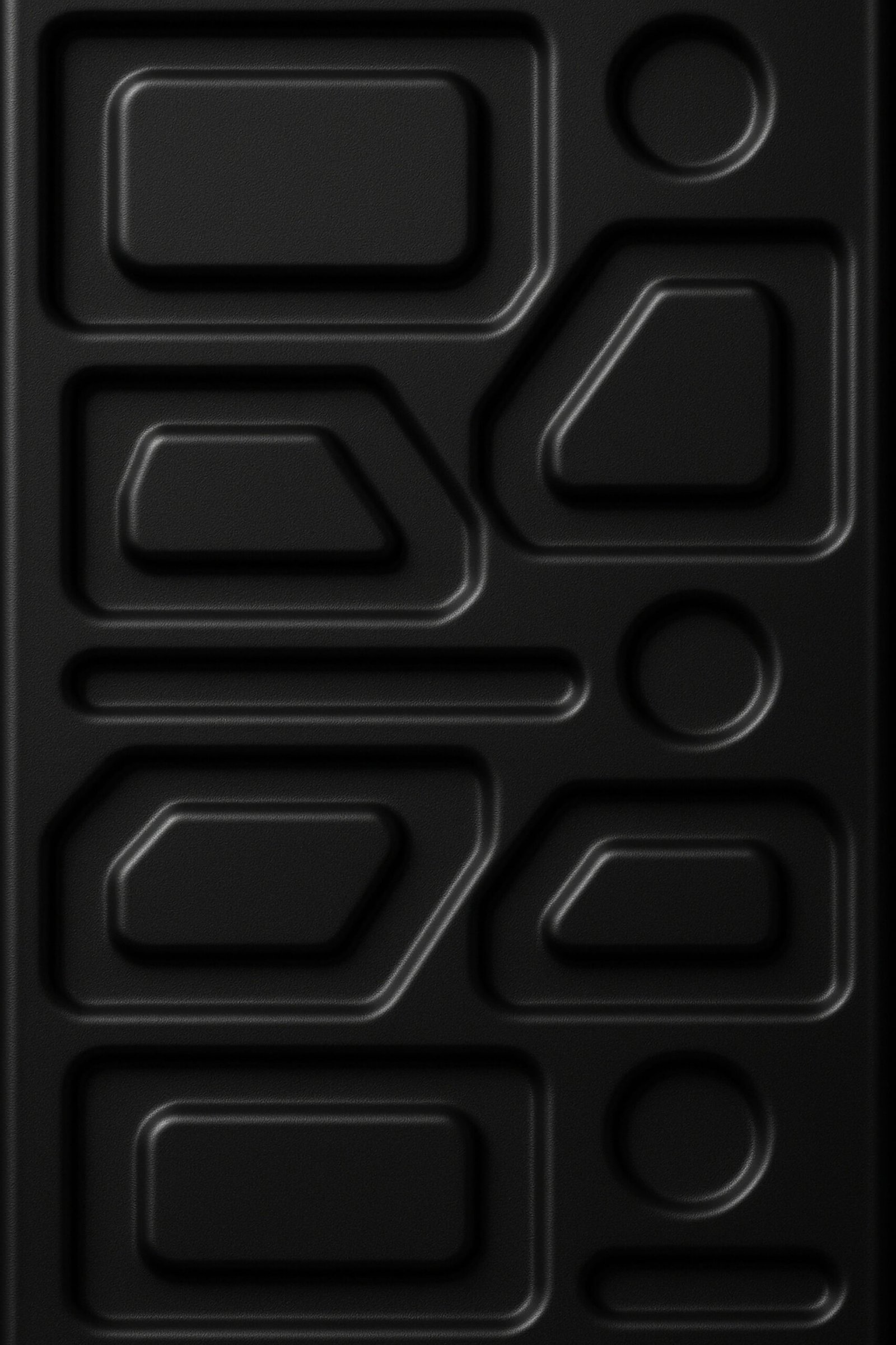

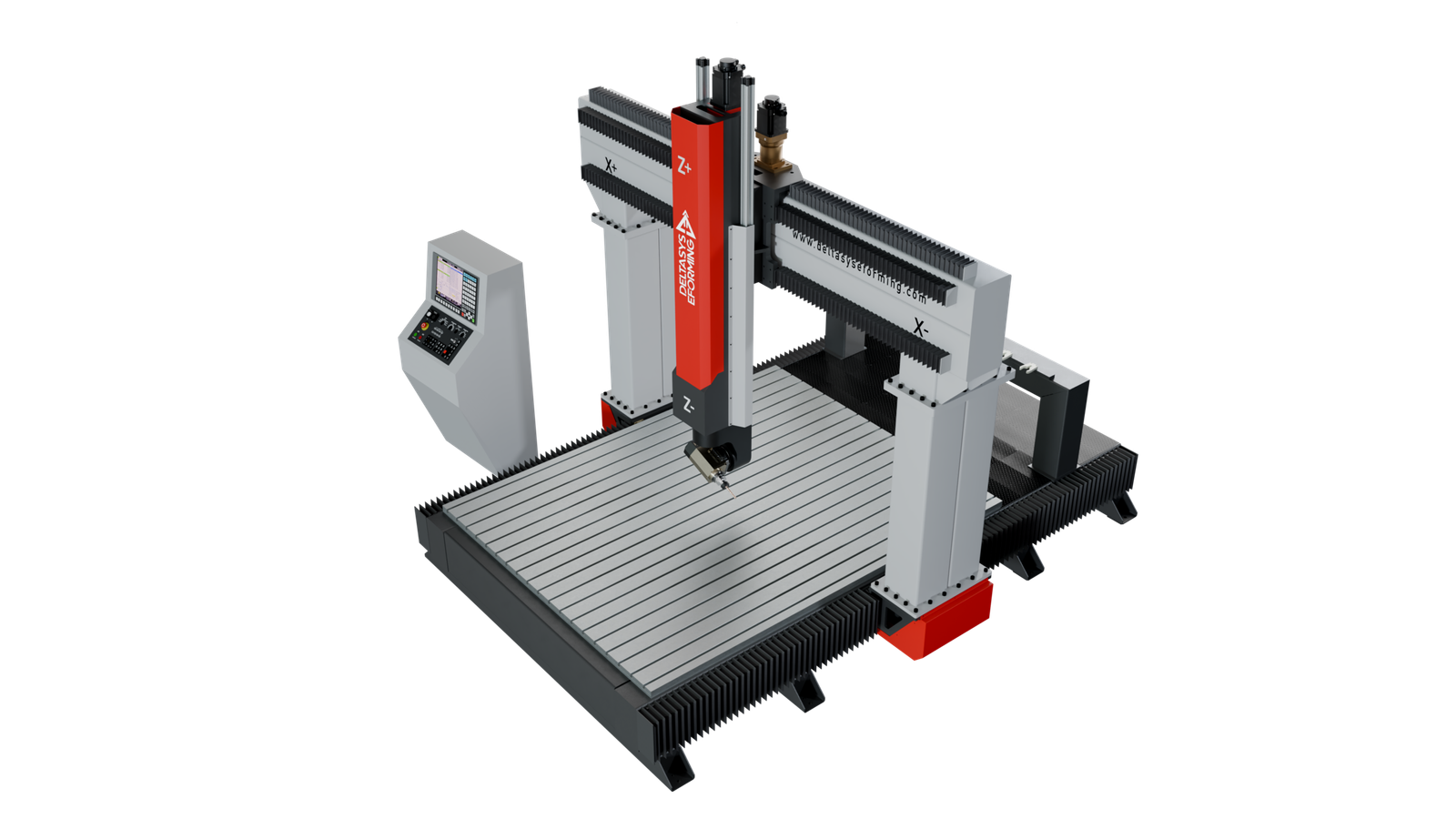

DELTASYS EFORMING 5-AXIS CNC ROUTER comes with robust and reliable HITECO Italy tilt head. This machine is being widely used for plastic and composite trimming, pattern & moulds for composite and sand casting industries. This versatile 5-Axis is available with either single moving aluminium tables or moving beam gantry type.

What is 5-Axis CNC Router?

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Explore the Core Features of 5-Axis CNC Router

Excellent Structural Rigidity

All steel components use FEA (Finite Element Analysis) to optimize rigidity and anti-Vibrations properties. Prevents cutting resonance and prolongs tools life and increases work piece accuracy and production capabilities.

Optimized spindle box

Optimized design, rectangular ratio 1:1.125 provides rigid Z axis travel. Spindle box interior has rib reinforcements to increase cutting and feeding rigidity and stability.

Optimized Z Axis Balance system

Twin tank counter balance loop design. Driver set firmly attached to Z axis provides precision response to servo motor and high thrust machining requirements on Z Axis.

Optimized feeding system

X Y Z Axis are coupled with heavy duty, high precision class linear guideways, with 0.003-0.005mm, Low friction, Low viscosity, optimizes high driven sensitivity and increases great dynamic accuracy.

Optimized feed structure(Motion) system

Three axis coupled with precision Grounded rack and pinion. Racks are mounted on precision machined and scrapped surfaces.

Powerful spindle, High cutting capabilities

The HSK 63F Spindle, Make Hiteco Italy (Detailed specs given below).

Aluminium Thick Plate Bed Platform

We use aerospace grade aluminium plate of 30mm thick for the bed platform, this bed is made of up of particular grade aluminium so it is stable and at zero level at all the time

Materials & Applications

Carbon Peek

Deltasys E-Forming CARBON PEEK is considered the highest performing 3D printing super polymer in the entire industry. To the well-known characteristics of PEEK, it adds greater thermal stability and stiffness. The addition of carbon fibers dramatically increases the mechanical properties of the component produced, eliminating the gap with traditional manufacturing techniques.

Peek

Deltasys E-Forming PEEK is a semi-crystalline super polymer that combines excellent mechanical characteristics with incredible thermal and chemical resistance properties, used in extreme applications where electrical insulation, high wear resistance and low coefficient of friction are also required.

Matrix

MATRIX is a composite material that combines polyamide with chopped carbon fibers, offering printed parts with an excellent surface finish. The printed parts have good mechanical properties and reasonable flexibility.

Technical Specifications

Download Brochure

5-Axis CNC Router

MODEL	DESCRIPTION			DE 5AXIS CNC ROUTER
	1525	2306	2310
Table	Length			2500mm	2000mm	2000mm
	Width			1500mm	3000mm	1500mm
	Maximum Load			600Kg	700Kg	700Kg
Travel	Cross Travel (X-axis)			2500mm	2000mm	2000mm
	Longitudinal Travel (Y-axis)			1500mm	3000mm	3000mm
	Vertical Travel (Z-axis)			500mm	600mm	1000mm
	Distance from Spindle End to Table			600mm	700mm	1100mm
	Distance from Spindle Center to Column			340mm
	Distance between columns			1890mm	2480mm	2480mm
Spindle	Spindle Driver Motor(Con./30Min)			8, 5Kw / 10Kw
	Spindle Speed			24000
	Spindle Taper			HSK 63F
ATC	Tool Storage Capacity			6 Tools
	Max Tool Size			25mm
	Max Tool Length			125mm
Feed	Cutting Feed Rate			15000mm/min
Feed	Rapid Traverse			20000mm/min
Miscellaneous	Power Requirement			Three Phase 440V AC 50Hz 3Kw+10Kw=13k=Kw
	Pneumatic Requiremnt			6 bar
	Machine Size Length			6240mm
	Machine Size Width			3200mm
	Machine Size Height			3050mm
	Machine Size Weight			6 ton

Spindle Configuration

5-Axis CNC Router
Electro Spindle Type	Assyncronous-4poles
Tool Interface	HSK 63F
Max Speed	24000rpm
Cooling	Liquid by Heat Exchanger
Ball Bearing	High Precision
Bearings Lubrication	Grease long life
Pneumatic Connection	Release Tool: 10.5 - 11.5 bar
Max Power (S1 -S6)	8, 5Kw @12000 Rpm (S10 / 10Kw @12000 Rpm (S6)
Max Torque (S1 - S6)	6, 8 Nm (S1) / 8 Nm (S6)
Current (S1 - S6)	20 A (S1) / 24 A (S6)
Voltage	380 V
Rotation	CW - CCW
Supply	By Inventor
Sensors	S1 Tool lock, S2 open clamp

Technical Specification of a Tilt Head

5-Axis CNC Router

Description	Axis A	Axis C
Servomotor	Depend on Controller you select	Depend on Controller you select
Servomotor Power	0.4Kw	0.4Kw
Servomotor Encoder	Absolute Absolute 20Bit	Absolute Absolute 20Bit
Gearbox	Harmonic Drive	Harmonic Drive
Max Continuous Torquee	380Nm	380Nm
Peak Torquee	570Nm	570Nm
Max Axis Rotation	±120°	±320°
Mechanical Blocking of Axis	No	No
Max Positioning Speed	6.100°/’	6.100°/’
Max Operating Speed	3.700°/’	3.700°/’
Positioning Precision of Axis	1 arcmin	1 arcmin
Weight	60Kg

5-Axis CNC Router

Extra Ancillary and Accessories Customer Should Bye
Spindle Liquid Chiller
Dust Collector Unit
Extra tool ATC
Foot Switch for tool away
RS232/USB/Ethernet Interface
Levelling Screw + Foundation Bolts
Polycarbonate Enclosure for entire machine
Servo Stabilizer
Linear Scale

5-Axis CNC Router FAQ

Thankyou for visiting our website Do you have questions about our company or various products? We will be happy to help you

A 5-axis CNC router is a computer-controlled machine that moves a cutting tool along five different axes simultaneously, allowing for highly precise and complex machining.

A 3-axis CNC router moves in X, Y, and Z directions, while a 5-axis CNC router has two additional rotational axes (A and B or C), enabling more intricate cuts and reducing the need for repositioning.

Common materials include wood, plastics, composites, aluminum, steel, titanium, and other non-ferrous metals.
